CV-6S Electron Beam Power Supply

The Temescal CV-6S electron beam power supply is a constant voltage, 6 kW high frequency switching power supply designed to power and control one or two electron beam sources simultaneously. This high level of output power makes it possible to achieve substantial deposition rates in large-scale production applications. Compatible with sources with either permanent magnet or electromagnet deflection, the CV-6S power supply provides stable output at all levels as well as adaptability, ease of integration, safety, and convenience for operating and service personnel. Voltage and current are regulated to +/- 0.5% by a high frequency switching inverter using advanced Insulated-Gate Bi-Polar Transistor (IBGT) technology. The high voltage is completely insulated from the effect of power line fluctuation, ripple, voltage sag, and frequency variation. The result is a constant voltage level that enables the user to maintain a tight beam spot and achieve the highest evaporation rate at any given power level. In addition to +/- 0.5% regulation, the high voltage and emission current control circuits also provide instantaneous arc-down recovery.

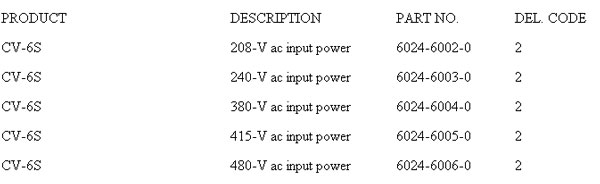

Note: Each CV-6S power supply includes a power module, a high-voltage/gun control unit, a filament transformer, a 20 ft. cable set, and an operator manual.

Temescal, BOC Coating Technology, 2700 Maxwell Way, P.O. Box 2529, Fairfield, CA 94533-0252. Tel: 707-423-2100; Fax: 707-425-1706.
